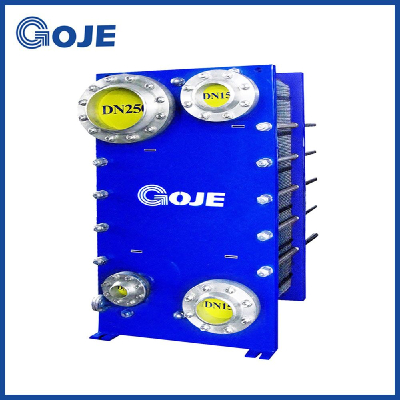

- Place of Origin: China
- Brand Name: GOJE
- Model Number: BR
Veneer area(M) | 0.25 | 0.35 | 0.65 |
Corrugation Shape | herringbone | herringbone | herringbone |
Plate Spacing | 3.5 | 3.5 | 3.5 |
Equivalent Diameter | 0.0070 | 0.0070 | 0.0070 |
Single channel section area | 0.001390 | 0.001390 | 0.002230 |
Diameter of the hole | 790 *260 755 | 1010 *260 975 | 1128 *410 1120 |
Centre distance | 150/80 | 150/80 | 250/150 |
Follow direction | One-sided | One-sided | One-sided |
Outline dimension | 990*455 | 1210*455 | 1490*695 |
Max design pressure | 2.0Mpa | 2.0Mpa | 2.0Mpa |
Design temperature | 180℃ | 180℃ | 180℃ |
Max assembly area | 40㎡ | 70㎡ | 150㎡ |
Connecting pipe diameter | DN150\80 | DN150\80 | DN250\150\80 |
